No external compressor required
The built-in mini compressor reduces installation work for small airjet loom production.
Single Nozzle Small Airjet Loom
Model MG768 Compact Airjet Loom
A compact single-nozzle airjet loom with a built-in mini compressor for light and medium cotton, polyester, and synthetic fabric weaving.
Built-in
Air compressor
56"
Reed width
350-420
RPM range
0.8 / 1.1 kW
Motor power
Product overview
Practical small airjet loom for compact textile workshops.
MG768 is built for textile mills that need compact airjet loom efficiency without a full external compressor system. The machine keeps installation simple, power demand controlled, and daily operation easy to manage.
- For light and medium fabric production
- Suitable for cotton, polyester, and synthetic fibers
- Good fit for mills focused on cost, space, and steady output
Key benefits
Simple installation, low power demand, steady airjet weaving.
Single-nozzle air insertion
The single main nozzle and air channel keep the weft insertion system direct and easy to maintain.
Low power demand
0.8 kW or 1.1 kW motor options help control running cost for small airjet weaving applications.
Factory running views
Actual compact airjet loom photos from factory operation.
Real workshop photos show the textile weaving machine, take-up system, let-off system, feeder with speed display, air tuck-in side, fabric surface, fabric edge, and weaving area.
Actual factory-running machine photos
MG768 looms operating in a textile workshop with fabric winding and machine rows visible.

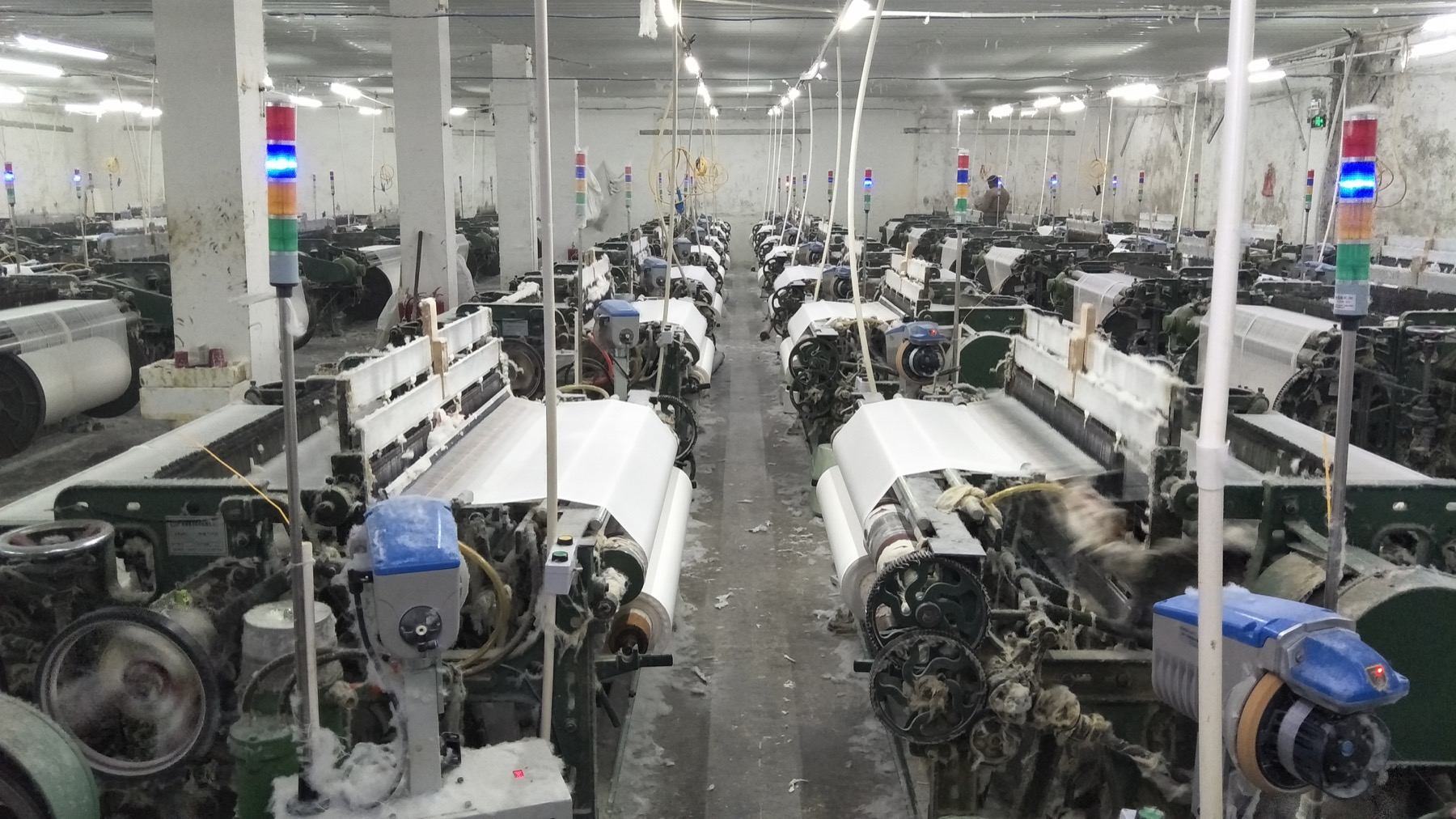

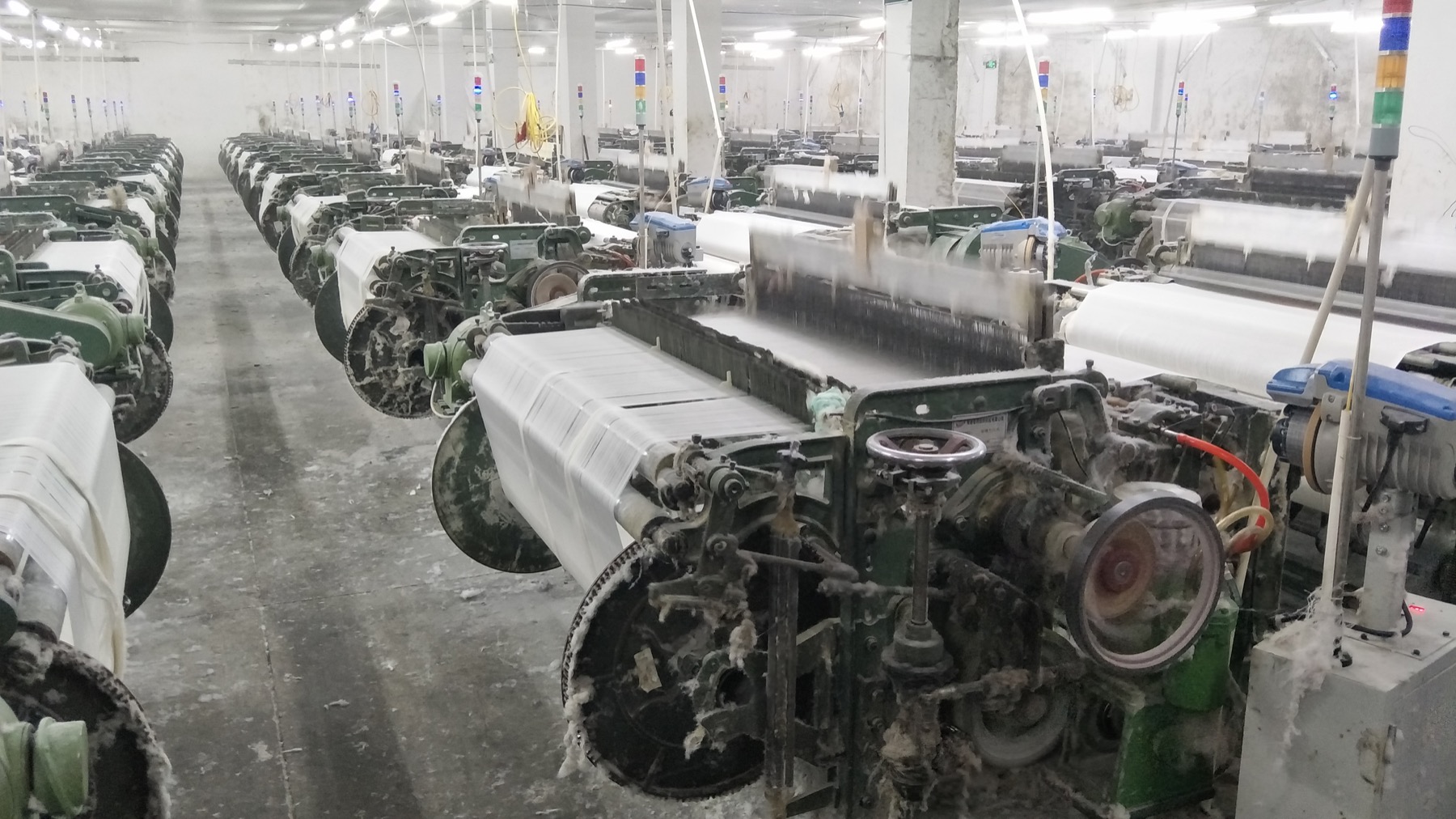

Production line view
Wide workshop view of multiple MG768 looms running together in production.

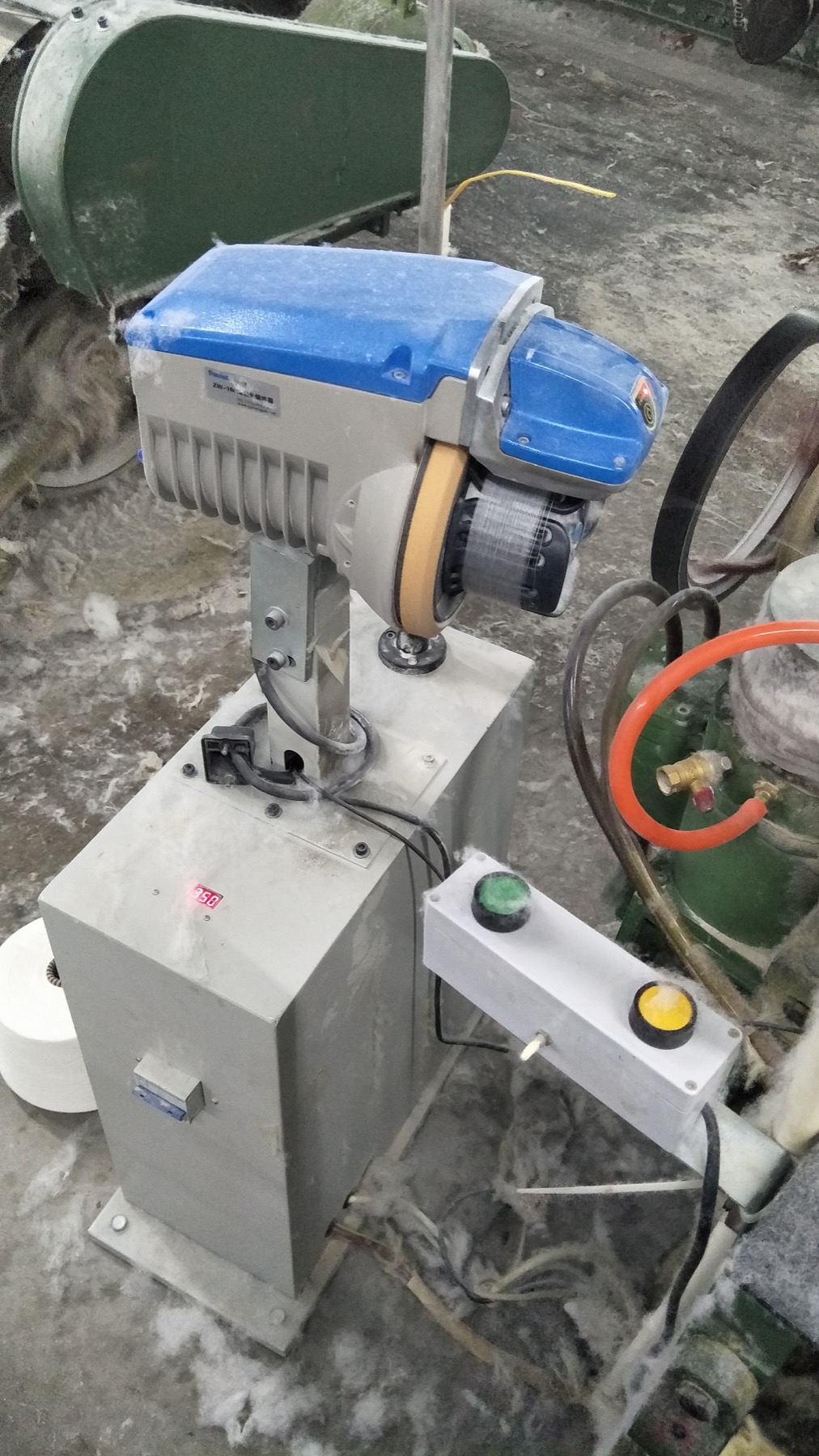

Feeder with speed display
Feeder unit with speed display for checking running speed during production.

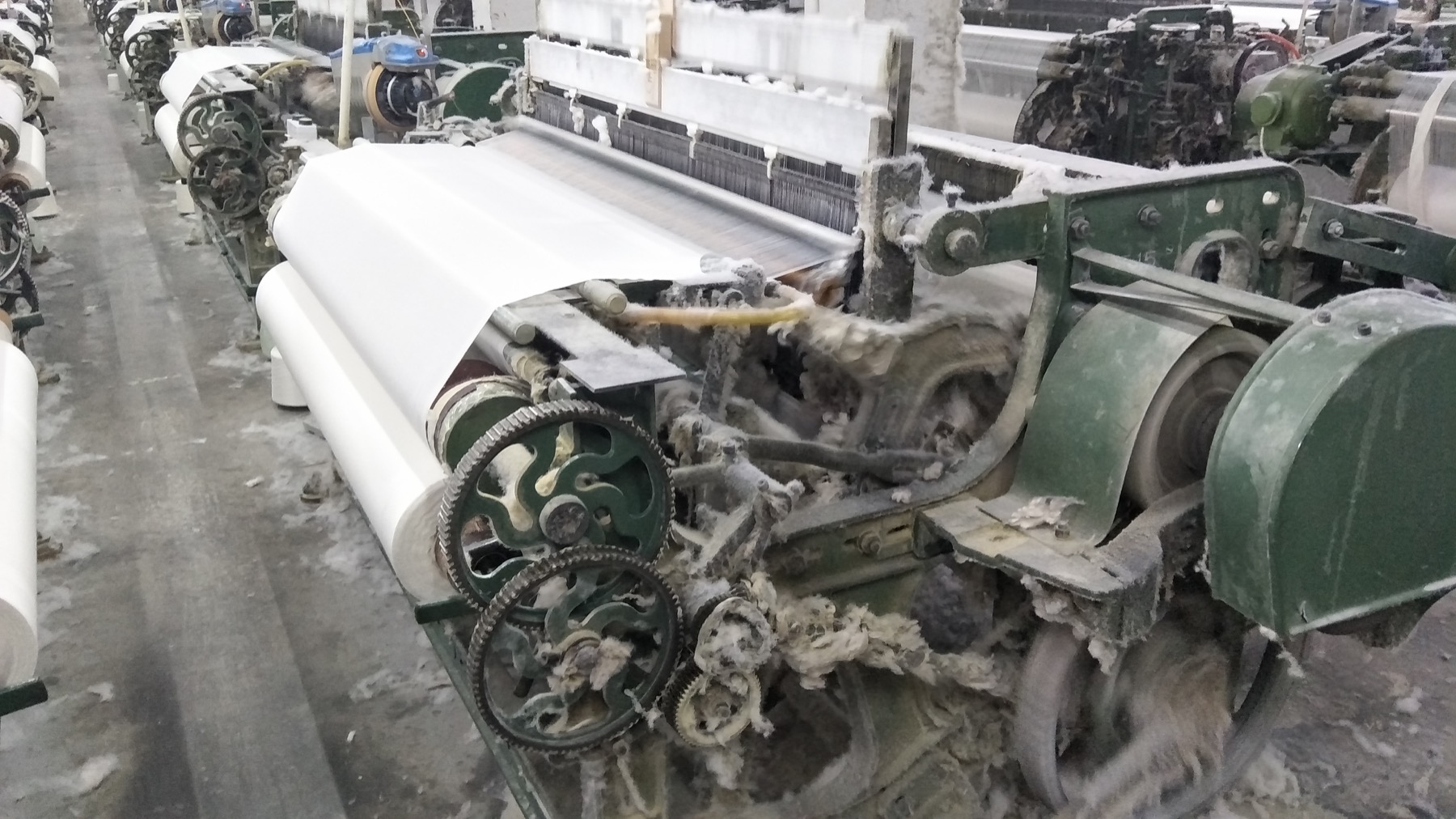

Take-up system
Cloth roller and gear-side view of the take-up system during production.

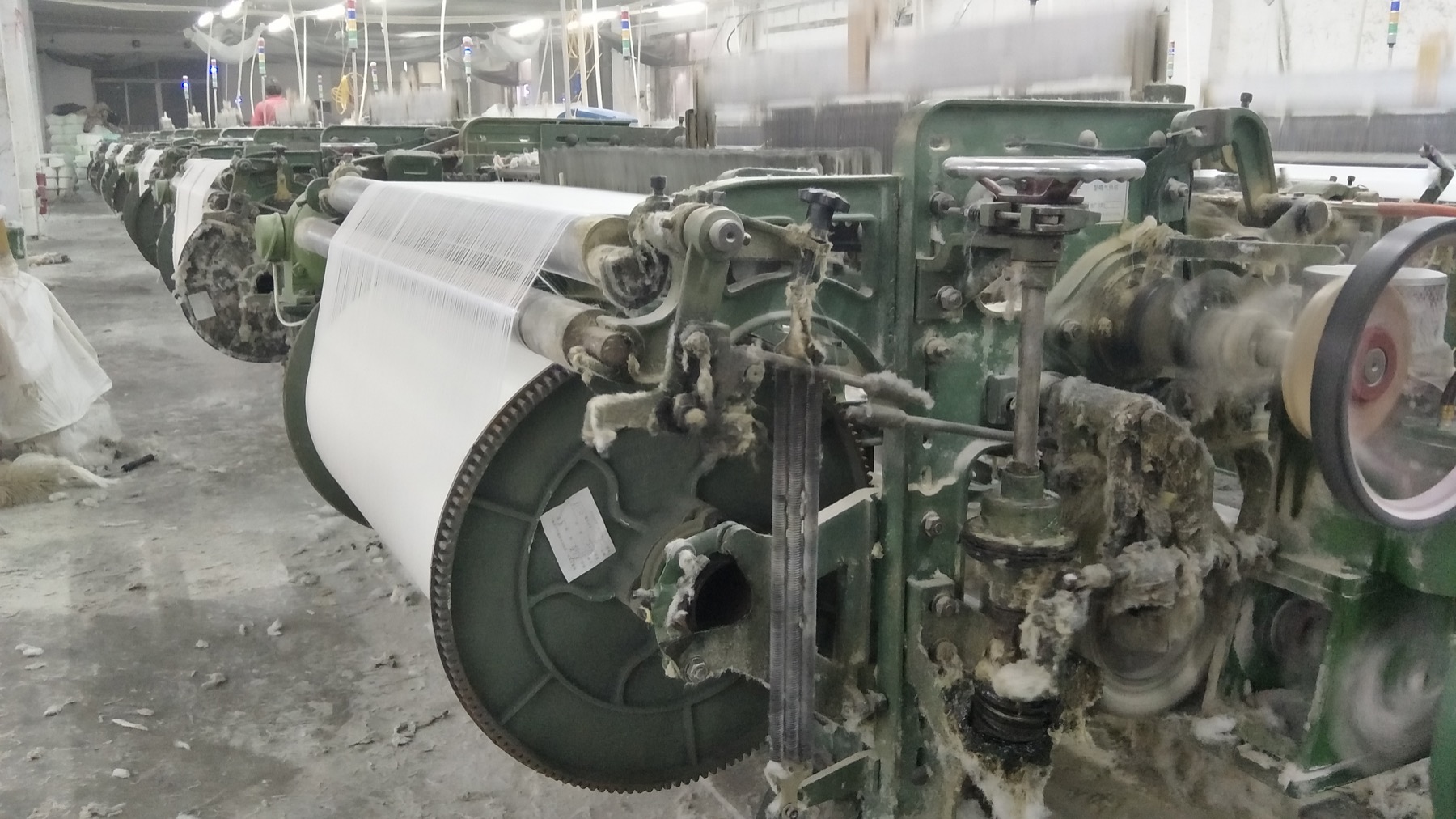

Let-off system
Rear mechanical let-off area with drive components and warp control details.

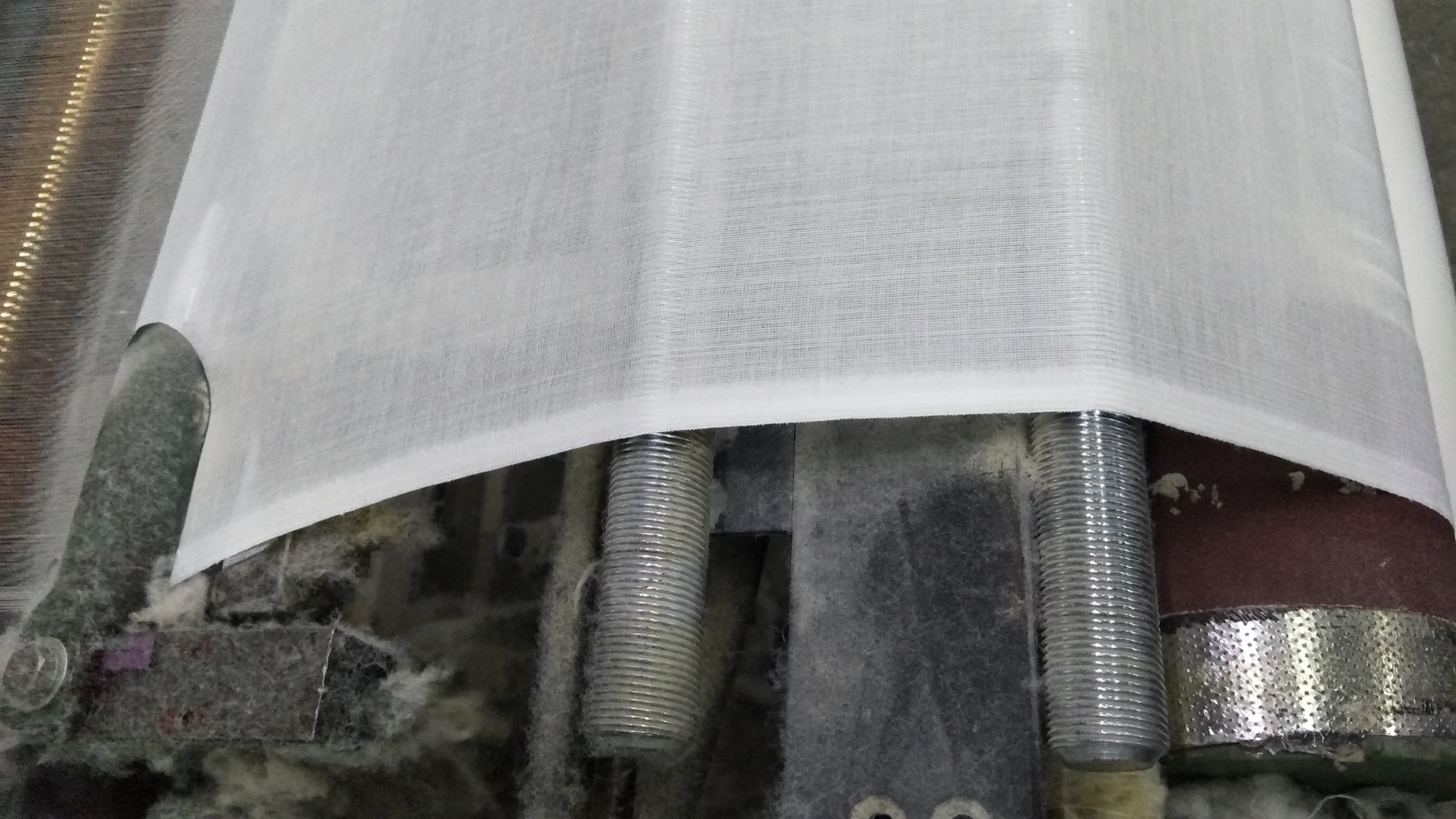

Air tuck-in side
Close view of the fabric edge and air tuck-in side while the loom is running.

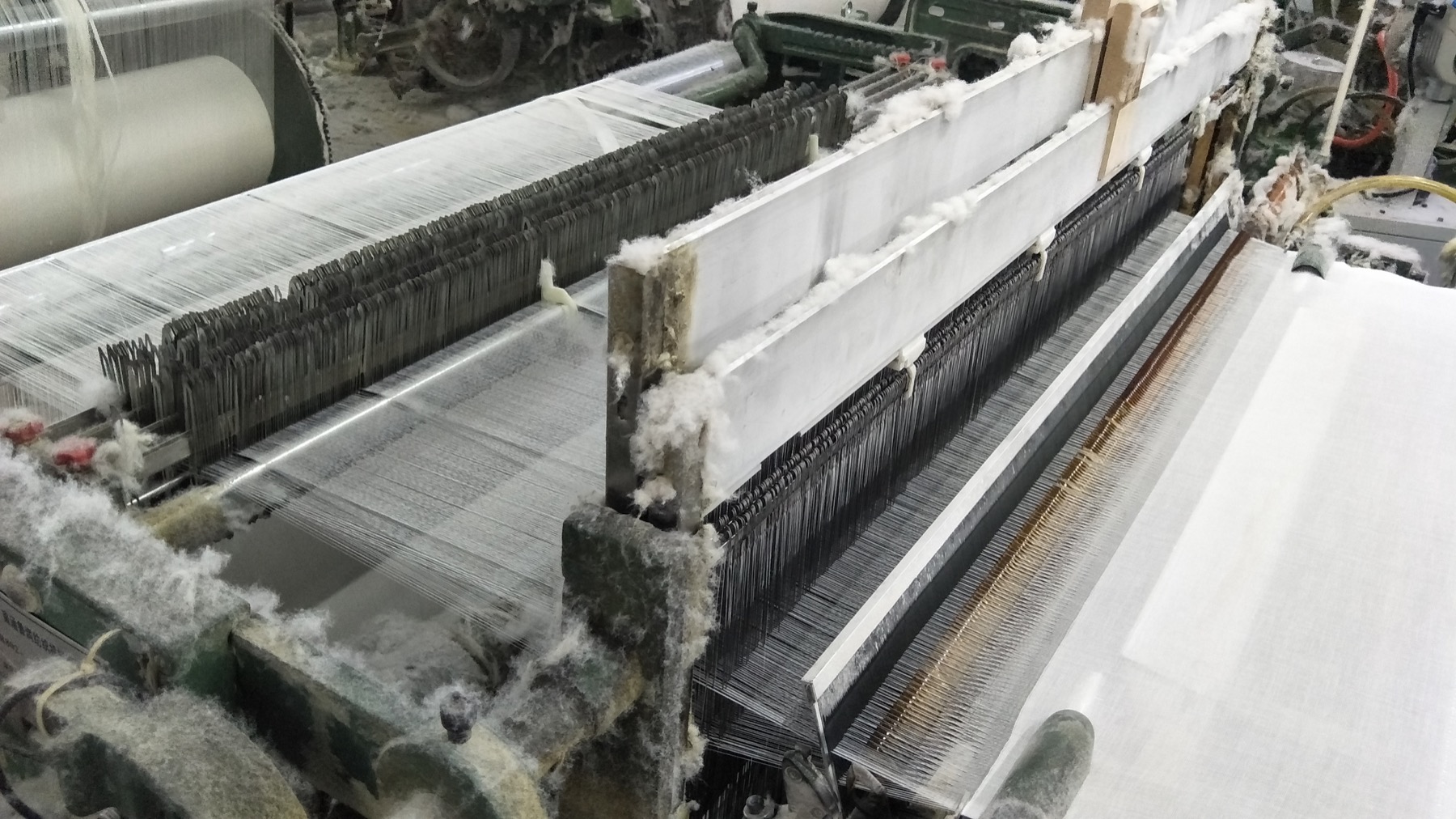

Weaving area
Actual warp path, heald frames, and reed area inside the working loom.

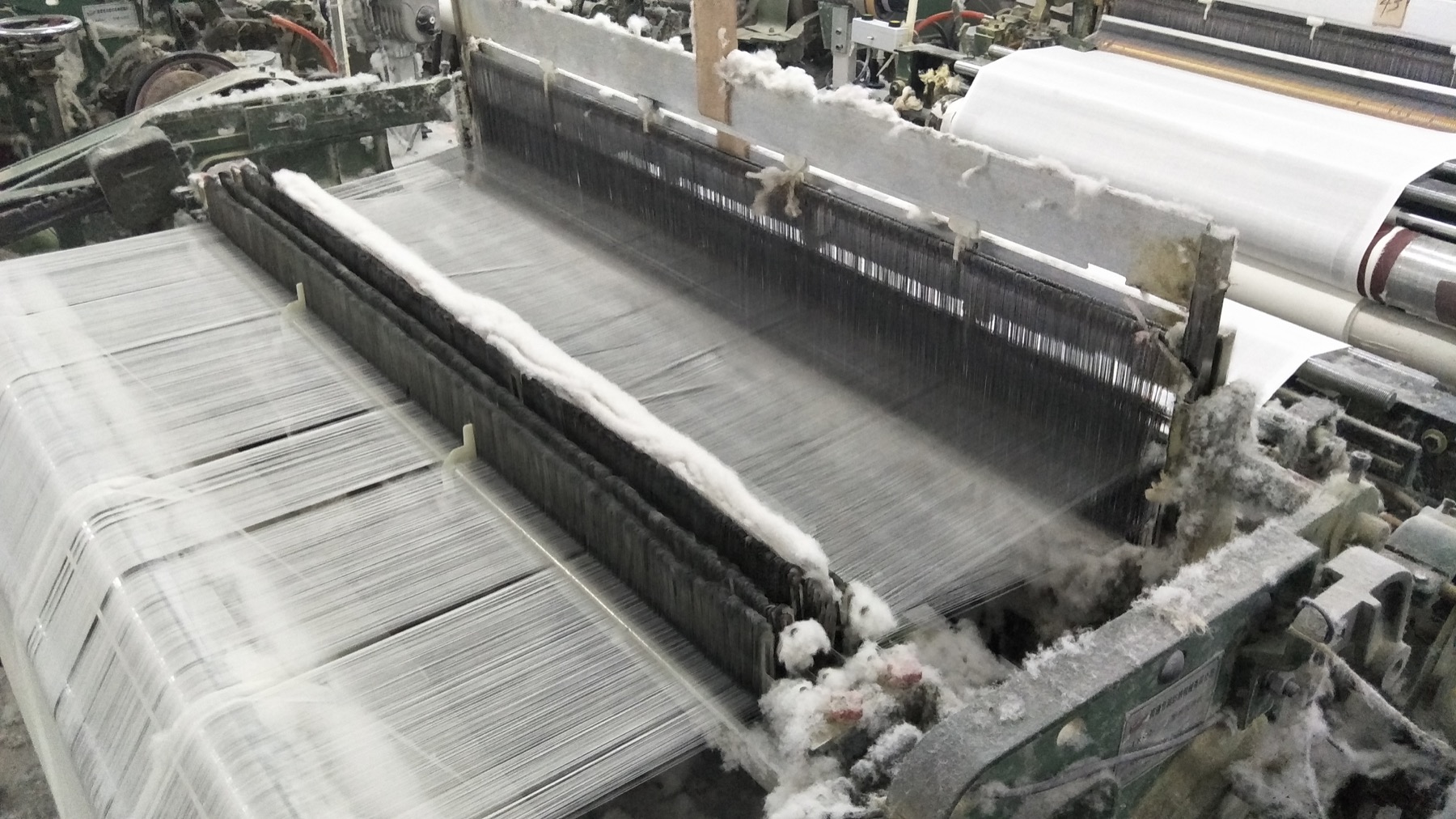

Fabric forming area
Fabric formation and weft insertion area shown during real workshop operation.

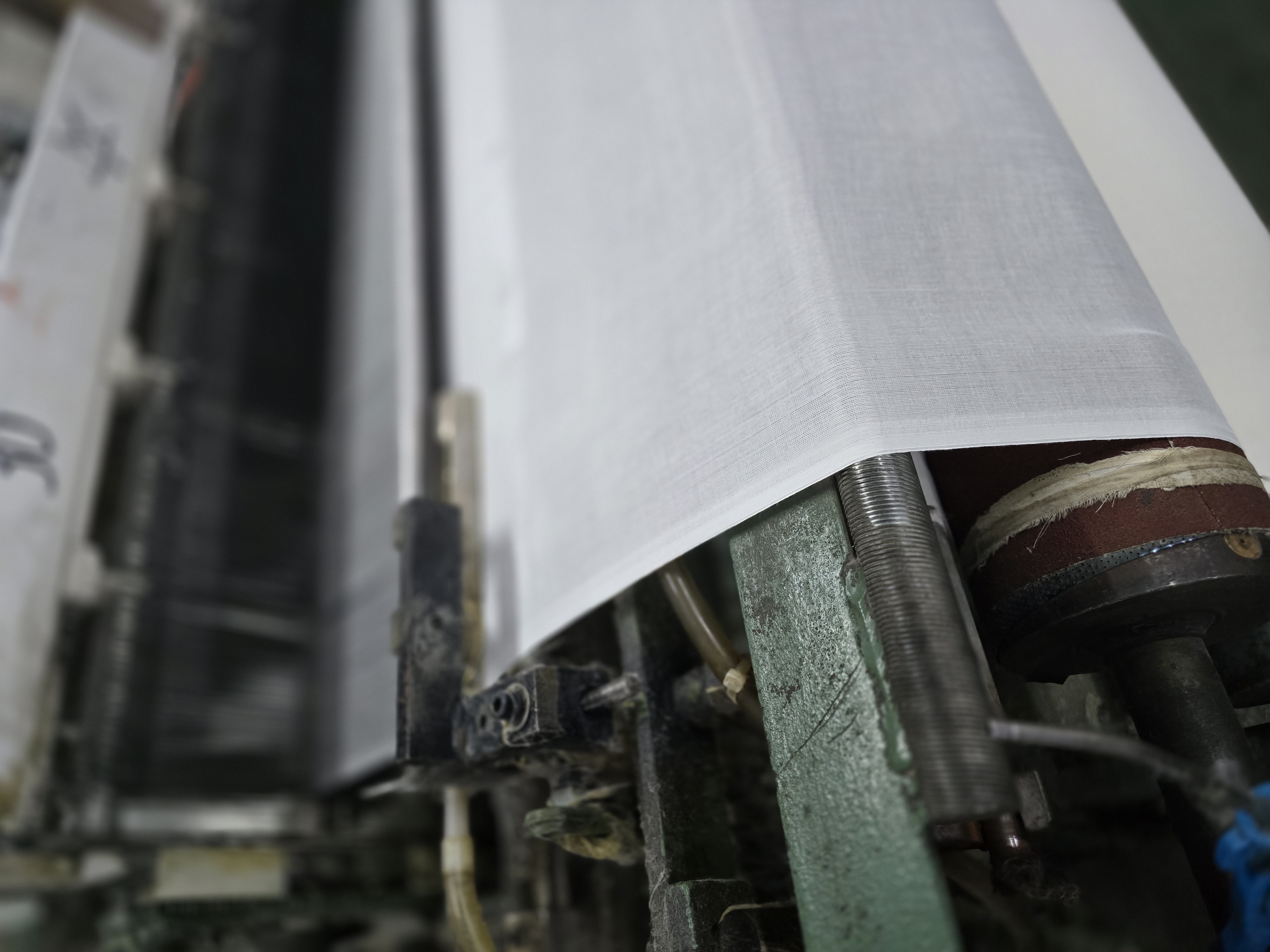

Fabric edge detail
Close running view of the fabric edge and cloth surface quality.
Factory running videos
Actual airjet loom operation videos with excellent fabric quality.
These factory-running videos show continuous production and a clean, even fabric surface.
Fabric quality during production
Smooth fabric formation and excellent weaving quality during real operation.
Actual factory running video
Steady workshop running with a clean and even fabric surface.
Production workshop
Real factory workshop environment for machine preparation.
Workshop photos show the production floor, machine arrangement, assembly process, and inspection details before delivery.

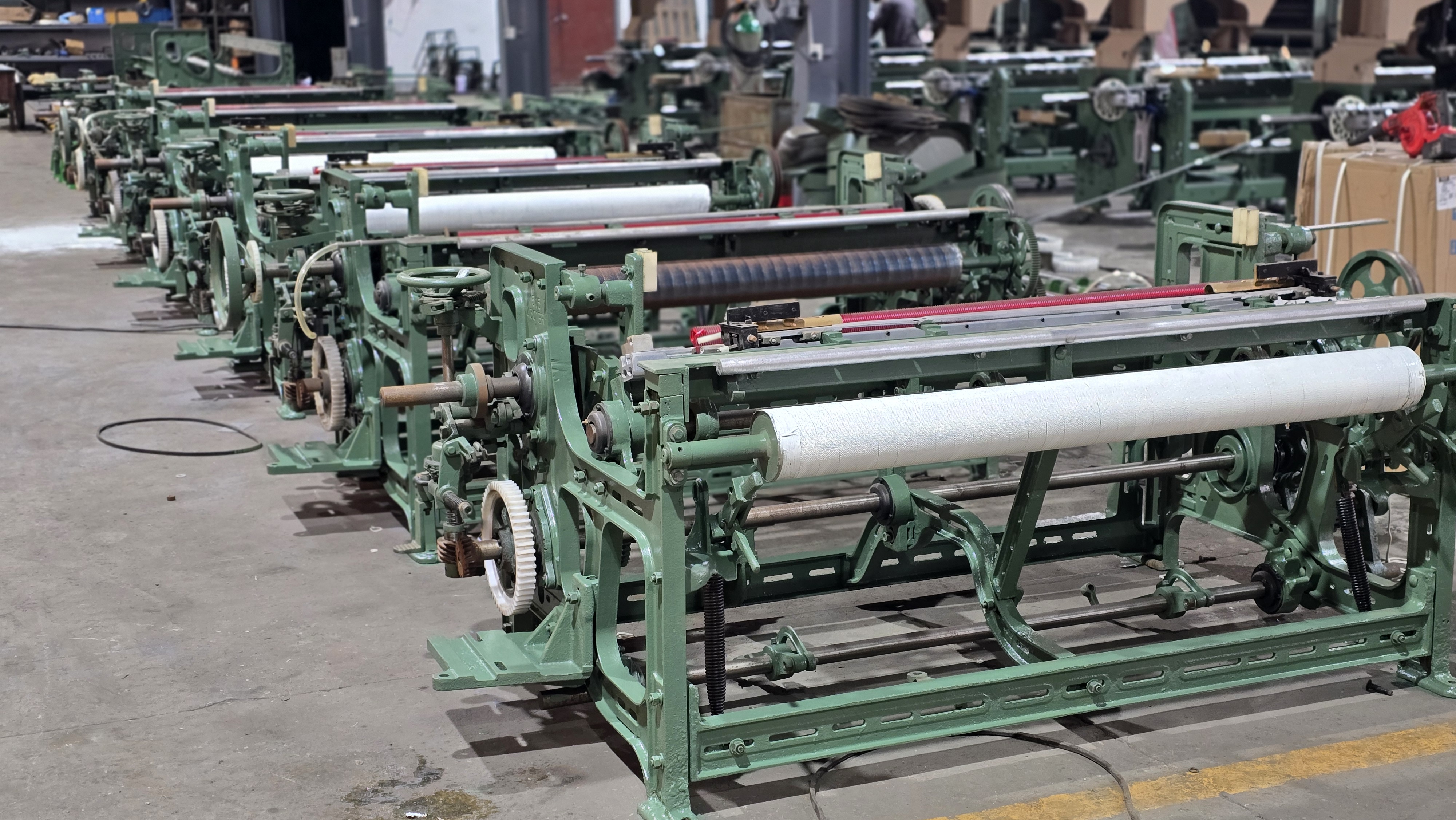

Aligned machine row
Horizontal workshop view of multiple MG768 loom frames aligned for assembly and preparation.

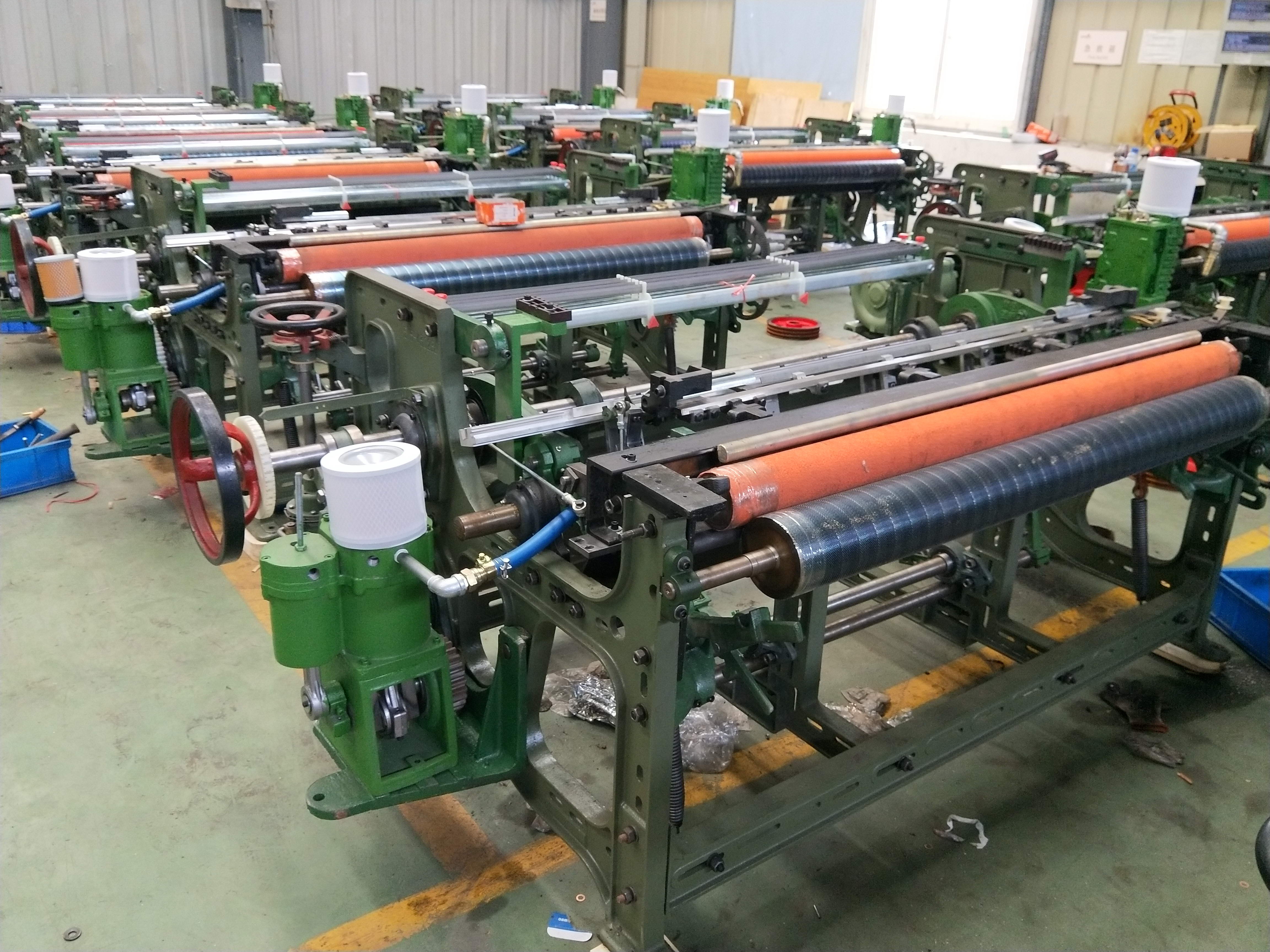

Batch assembly line
Multiple units prepared together with frame assemblies, take-up rollers, and air units visible.
Machine row and aisle
Side-row view showing air components, machine spacing, and the workshop aisle.
Technical data
Compact Airjet Loom Model MG768 specifications.
Key technical data for the MG768 compact airjet loom. Final configuration can be confirmed according to yarn, fabric sample, and production requirements.
| Model and weaving range | |
|---|---|
| Model | MG768 Single Nozzle Airjet Loom |
| Reed Width | 56 inches |
| Weft Density | 8-68 picks/inch |
| Speed | 350-420 RPM |
| Air and weft system | |
| Air Supply | Built-in air compressor |
| Nozzle | Single main nozzle + air channel |
| Feeder | One electric feeder |
| Mechanical configuration | |
| Take-up | Mechanical take-up gear |
| Let-off | Mechanical worm gear |
| Frame | 2-piece frame |
| Warp Beam | 1.5 sets, 600 mm |
| Cloth Roller | 1.5 sets, 300 mm roller diameter |
| Control and power | |
| Warp Stop | Electrical warp stop with 4 lines |
| Tuck-in | Air tuck-in included |
| Motor Power | 1.1 kW or 0.8 kW |
| Control Box | Speed display |
Fabric range
For everyday cotton, polyester, and synthetic fabrics.
Cotton fabric
For compact cotton weaving where stable insertion and simple operation are more important than complex color selection.
Polyester fabric
Suitable for light and medium polyester production with controlled power use and straightforward maintenance.
Synthetic fibers
A practical option for synthetic fiber fabrics when workshop space, installation cost, and energy use need attention.
JETWEAVING support
Airjet loom manufacturing experience since 1998.
JETWEAVING designs and produces airjet weaving machinery for textile manufacturers, with technical support and spare parts service for long-term operation.
Inquiry
Prepare the right configuration for your fabric.
Share your WhatsApp contact, fabric details, reed width, and expected output. The form prepares a clear message for your JETWEAVING sales discussion.
